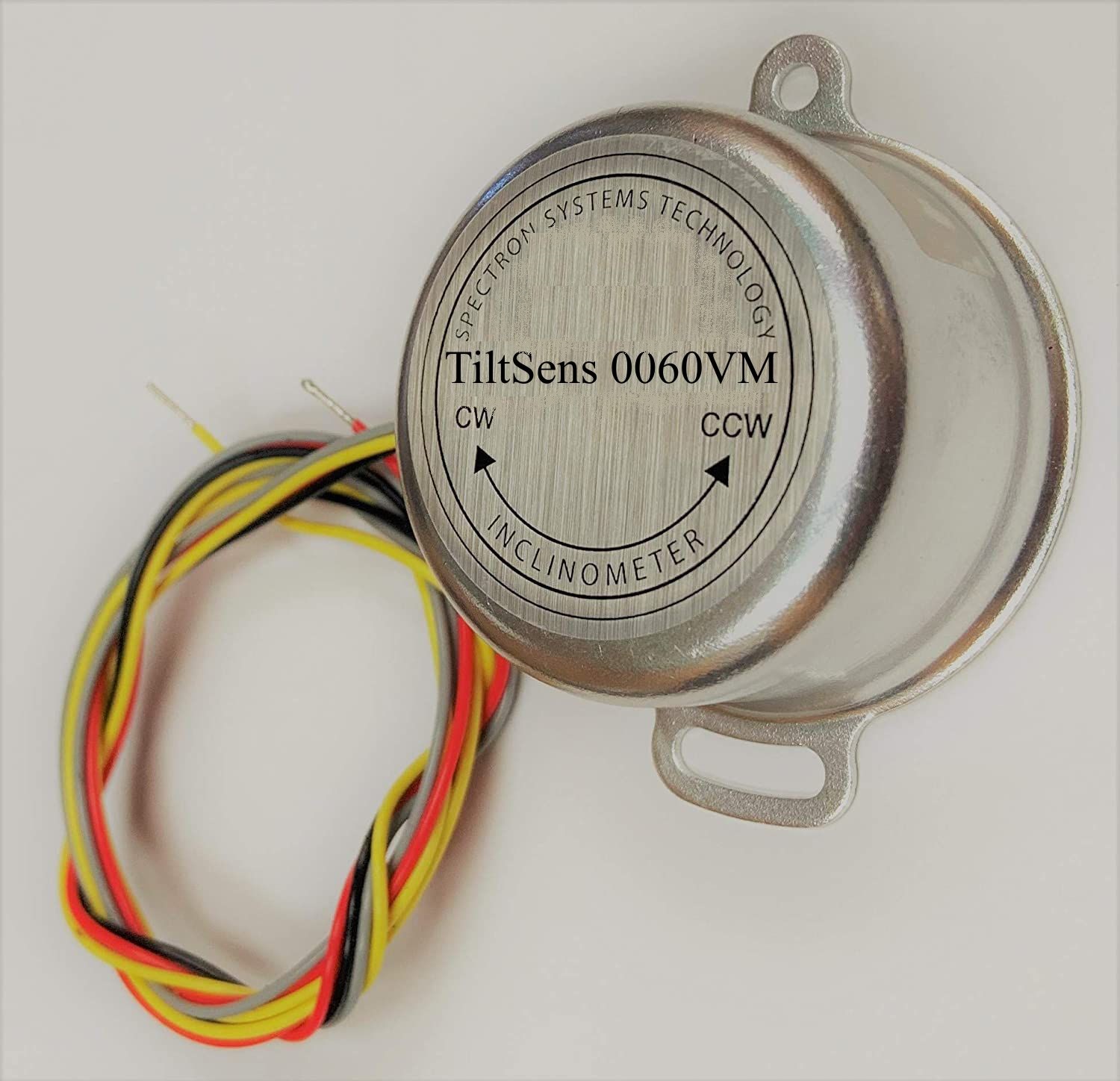

TiltSens 060VM - 060VS


 Features

• Input Voltage .......................................0 to 30Vdc
• Input Current .......................................0.5mA (nom.)
• Output...................................................+60mV/o (+/- 1%)
• Null Output ...........................................0.0Vdc, +/-10 mVdc
• Repeatability ........................................0.05 degrees
• Resolution ............................................0.001 degrees
• Linear Range ........................................+/-60 degrees
• Total Range ..........................................+/-70 degrees
• Temperature Range...............................40o to +70o C
• Start-up Time .......................................<1 second
• Weight ..................................................80 grams
• IP..........................................................67

Inclinometer Sensor
